Vertex Home Water Softener & Conditioner

Key Components:

• Coconut shell based activated carbon reduces organic chemicals and chlorine.

• Commercial grade softening resin makes your water silky smooth by reducing scale forming minerals.

• Quartz media for enhanced distribution and cleaner water.

• Clack Water Specialist Control Valve enhances efficiency and flow rate by optimizing regeneration cycles, reducing water & salt usage, and maintaining consistent pressure for improved system performance.

One Year of Vertex Refresh Included:

This quarterly system maintenance includes:

• Comprehensive System Check to ensure efficiency

• Salt Top-Off (Up to 2 bags per year)

• Parts, labor, and replacement filters included as long as you're a member

Installation will be handled by a licensed plumber. Our licensed plumbers ensure seamless installation.

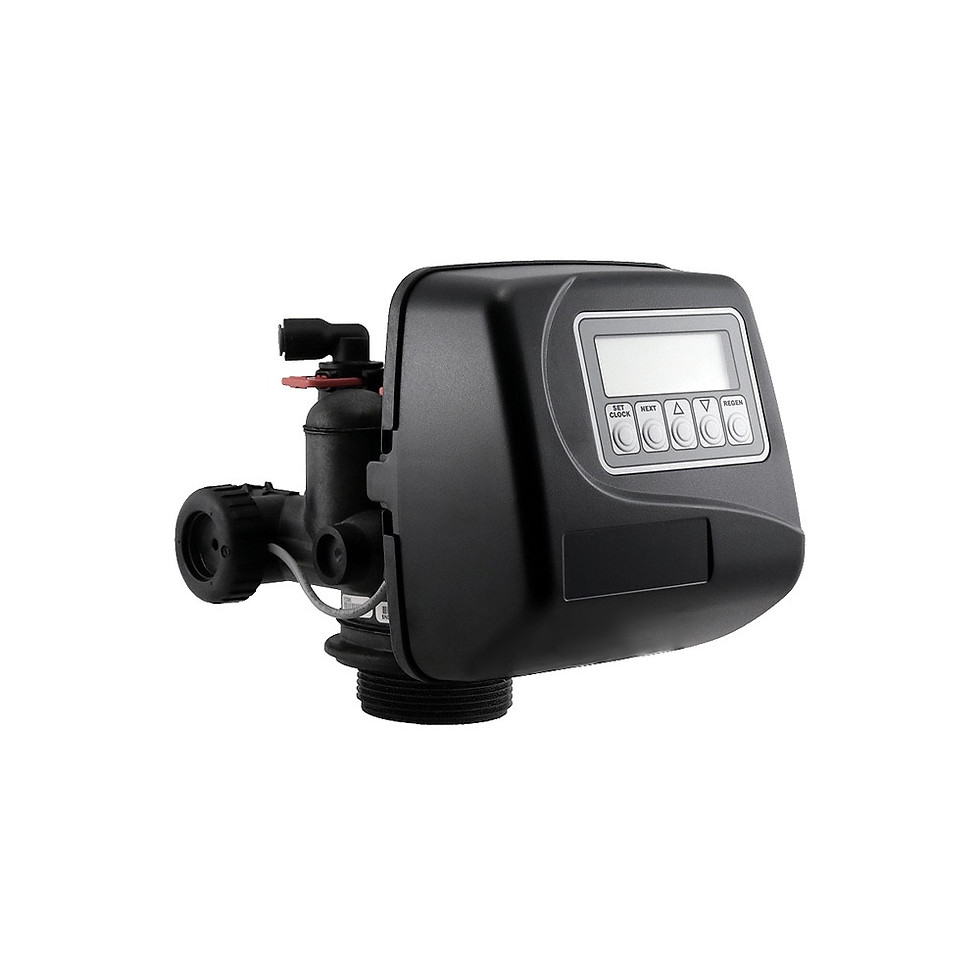

Clack WS1 Control Valve

• Solid state microprocessor with easy access front panel settings • Three modes of operation; meter immediate, meter delayed, or time clock delayed • Double backwash feature offers optimum regeneration, cleaning ability, and efficiency • Capable of 36 pre-programmed regeneration cycles based on control valve setting • Days override feature; 1 – 28 days available • Backwash and brining ability to 21” diameter tanks • Downflow/upflow regeneration • Stores system configuration and operation data in nonvolatile memory • Coin Cell Lithium battery back-up with an 8 hour carry over • Level VI 15-volt output DC power supply provides safe and easy installation • Control valve design provides optimum service and backwash rates • Pre or Post treated water regenerant refill • Reliable and proven DC drive • One piece expanding seal spacer stack assembly • Linearly reciprocating piston operation

SPECIFICATIONS

Inlet/Outlet Fittings

• Size: ¾” to 1.5” NPS

Cycles

• Maximum: up to 6

Valve Material

• Type: Fiber Reinforced Composite

Regeneration

• Modes: Downflow/Upflow

Flow Rates

• Service (15 psi drop, includes bypass and meter): 27 gpm

• Backwash (25 psi drop, includes bypass): 27 gpm

• Cv Service: 7.0

• Cv Backwash: 5.4

Operating Pressures

• Range: 20 psi – 125 psi

Operating Temperatures

• Range: 40º – 110º F

Meter

• Accuracy: ± 5%

• Flow Rate Range: 0.25 – 27 gpm

• Gallon Range: 20 – 50,000 gallons

• Totalizer: 1000 – 9,999,000 gallons

Electrical Specifications Power Supply

• U.S.: 100VAC to 120VAC, 50/60 Hz, Output: 15VDC, 500 mA

Cycles of Operation (Softener Downflow)

1. Backwash 1st (upflow): 6 – 12 minutes

2. Regenerate Draw/Slow Rinse (downflow): 45 – 75 minutes

3. Backwash 2nd (upflow): 3 – 12 minutes

4. Fast Rinse (downflow): 3 – 8 minutes

5. Regenerant Refill (in service with treated water): As Programmed

6. Service (downflow)

Tank: 10 Years

Valve: 5 Years

Labor: Included within active Vertex Refresh worry-free subscription
